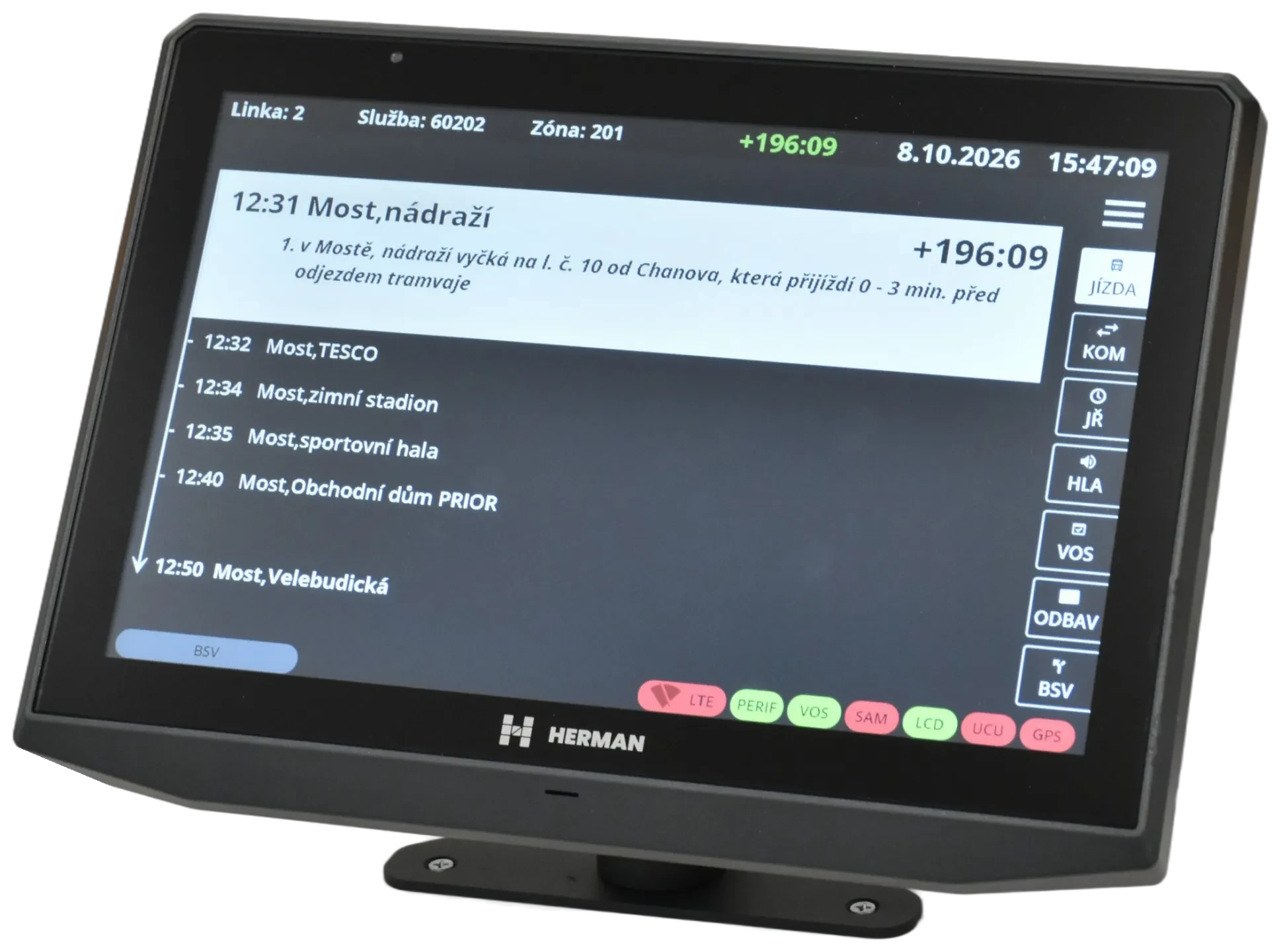

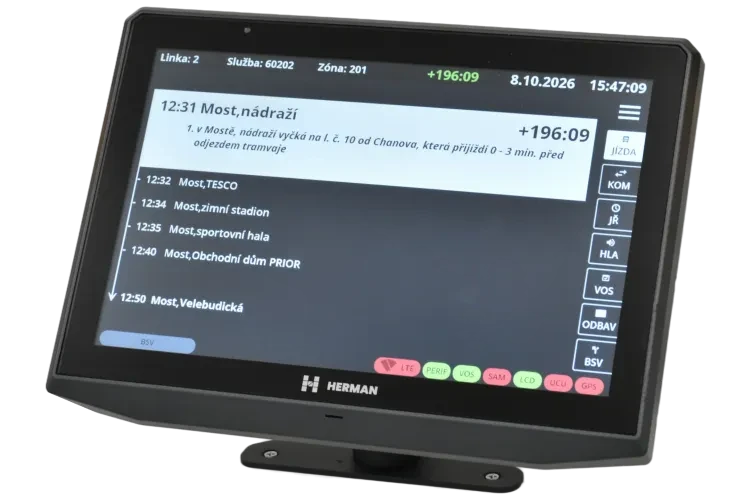

EPT x.12 LCD driver terminal
The display unit (LCD monitor) is designed to be positioned in the driver’s cab within the driver’s field of vision, so as not to obstruct the view from the driver’s seat or interfere with the driving of the vehicle. The monitor can be divided into the required number of sections, displaying live footage from individual cameras in the required number and at the largest possible size. The layout of the individual camera feeds on the monitor is user-configurable.
Contact us
The display unit (LCD monitor) is designed to be positioned in the driver’s cab within the driver’s field of vision, so as not to obstruct the view from the driver’s seat or interfere with the driving of the vehicle. The monitor can be divided into the required number of sections, displaying live images from individual cameras in the required number and at the largest possible size. The layout of the individual camera images on the monitor is user-configurable.
The monitor allows the driver to adjust the brightness either automatically or manually. It features an LED indicator which signals system operation (data download) for a quick overview when the LCD is switched off.
With a simple switch, it is possible to display the complete status of all system components, the reversing camera view or the view behind the vehicle. The monitor can also be switched on and off by the driver, whilst it is always activated when the vehicle enters a bus stop.
Features:
- 12.1” LCD panel
- Display resolution: 1280x800 WXGA
- Single power supply from the on-board computer
- Single DVI-HDMI connection cable
- Low power consumption (typ. 5 W)
- Easy installation in the vehicle
